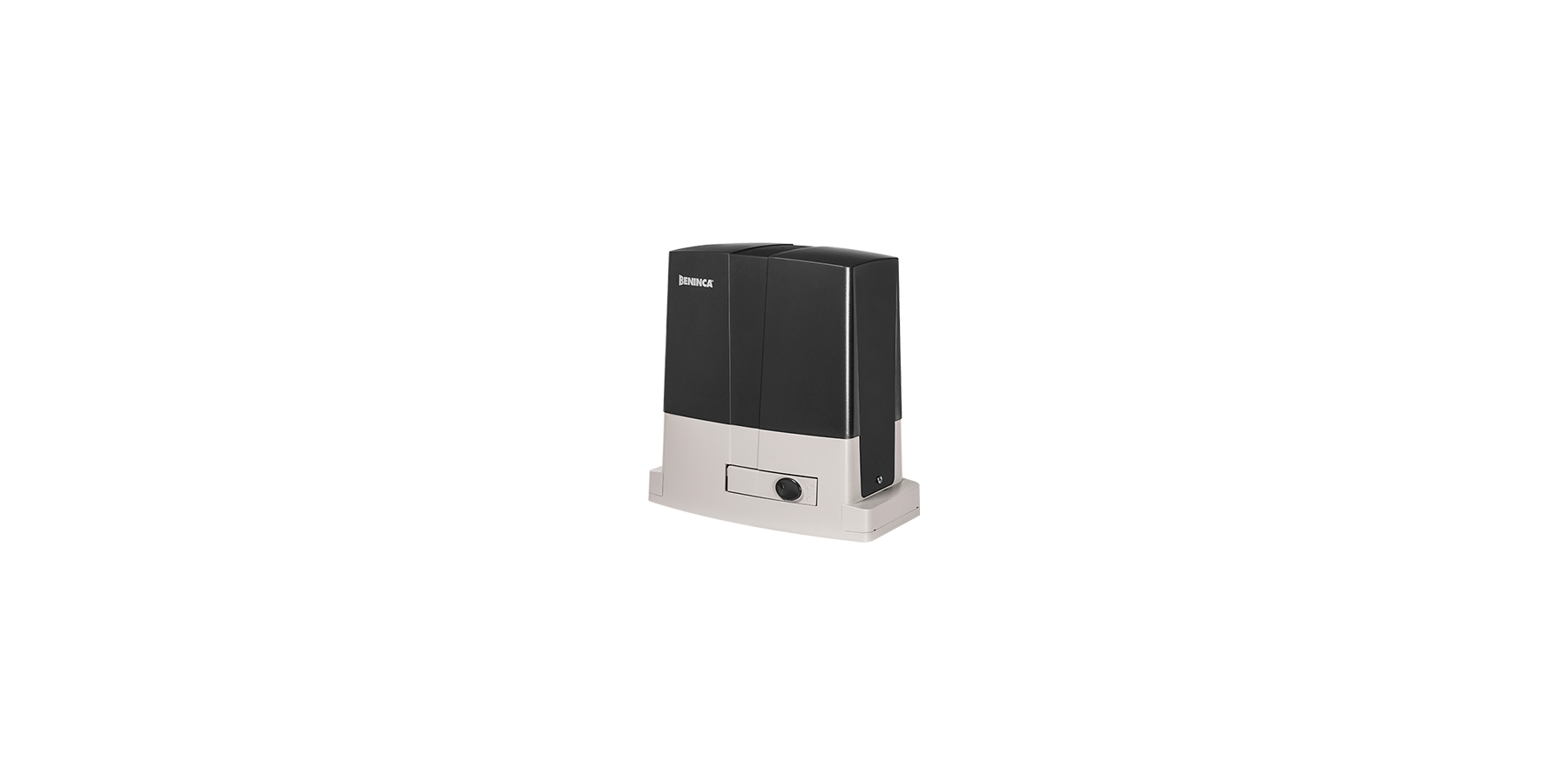

Geared motor BULL424ESA

24 Vdc gear motor for intensive use, with integrated control unit and encoder

Residential use

24 Vdc

Up to 450 kg

Integrated device that guarantees maximum precision during the automation manoeuvring steps

Intelligent power control system that allows obtaining dynamic data through a precise calculation of the thrust. The system is able to locate any critical points and adjust the torque accordingly in relation to actual requirements and according to measured performance

433.92 MHz Receiver equipped exclusively with Advanced Rolling Code (ARC)

64 transmitters storable inside the receiver

BULL424ESA

24 Vdc | intensive use

24 Vdc gear motor for intensive use, with integrated control unit and encoder | Energy saving ESA SYSTEM | The encoder device ensures maximum safety and precision in the gate moving phases | The STC system device enables the torque management in relation to the position of the gate, which guarantees maximum safety | Amperometric sensor obstacle detection system to prevent crushing | Battery back up system ready | Metal release lever | Magnetic limit switches accessory available (MLS)

325x100x5 mm, installation template included, motor spacing 300x75 mm, 4 holes Ø 9 mm

BULL424ESA 1x

BULL424ESA

24 Vdc gear motor for intensive use, with integrated control unit and encoder

PUPILLA.T 1x

PUPILLA.T

Pair of adjustable photocells with three positions, power supply 14÷30 Vac/12÷30 Vdc | Option to mount 2 pairs close together without synchronization

LAMPY 1x

LAMPY

Flashing light 12÷255 Vac/dc with integrated antenna

TO.GO2VA 1x

TO.GO2VA

2-channel 433.92 MHz transmitter with Advanced Rolling Code and Rolling Code

Power supply 230 Vac (50-60Hz)
Motor supply 24 Vdc
Max absorbed current 0.4 A
Power consumption in stand-by ≤ 1.5 W
Maximum thrust 428 N
Opening speed 6,7 ÷ 11 m/min
Duty cycle intensive use
Protection level IP44
Built-in control unit
Integrated receiver
Encoder
Virtual encoder
Magnetic limit switches
Pinion for rack M4 Z14
Operating temperature -20°C /+50°C
Lubrication GREASE
Maximum gate weight 450 kg
Weight 10.4 kg
N. motors per pallet 40
Kit weight 11.1 kg
N. kits per pallet 40

CP.B24ESA

APPLICATION

1 actuator for sliding gates, series BULL424ESA and BULL624ESA

CONTROL UNIT POWER SUPPLY

230 Vac – 50/60 Hz

MOTORS POWER SUPPLY

24 Vdc

MAIN FUNCTIONS

Integrated LCD display | Integrated 433.92 MHz 64-code radio receiver with ARC coding | Integrated ESA SYSTEM for energy savings | Removable terminal boards | Automatic, semi-automatic and deadman’s logic | Motor limit switch inputs | Separate photocell inputs in opening-closing and photocell active in closing phases | Pedestrian, step by step and stop inputs | Input for N.C or 8K2 sensitive edge | Two outputs for configuration as gate open indicator, service light, second radio channel or area light | Photocell testing | Autosetting of operating parameters | Electronic torque adjustment with automatic calculation for each point in the stroke (STC SYSTEM) | Anti-crushing safety thanks to amperometric detection and encoder management | Adjustable slow-downs | Advantouch system to configure parameters and manage radio transmitters | Number of maneuvers | Programming access password | Maintenance warning

Technical Drawing BULL424ESA
