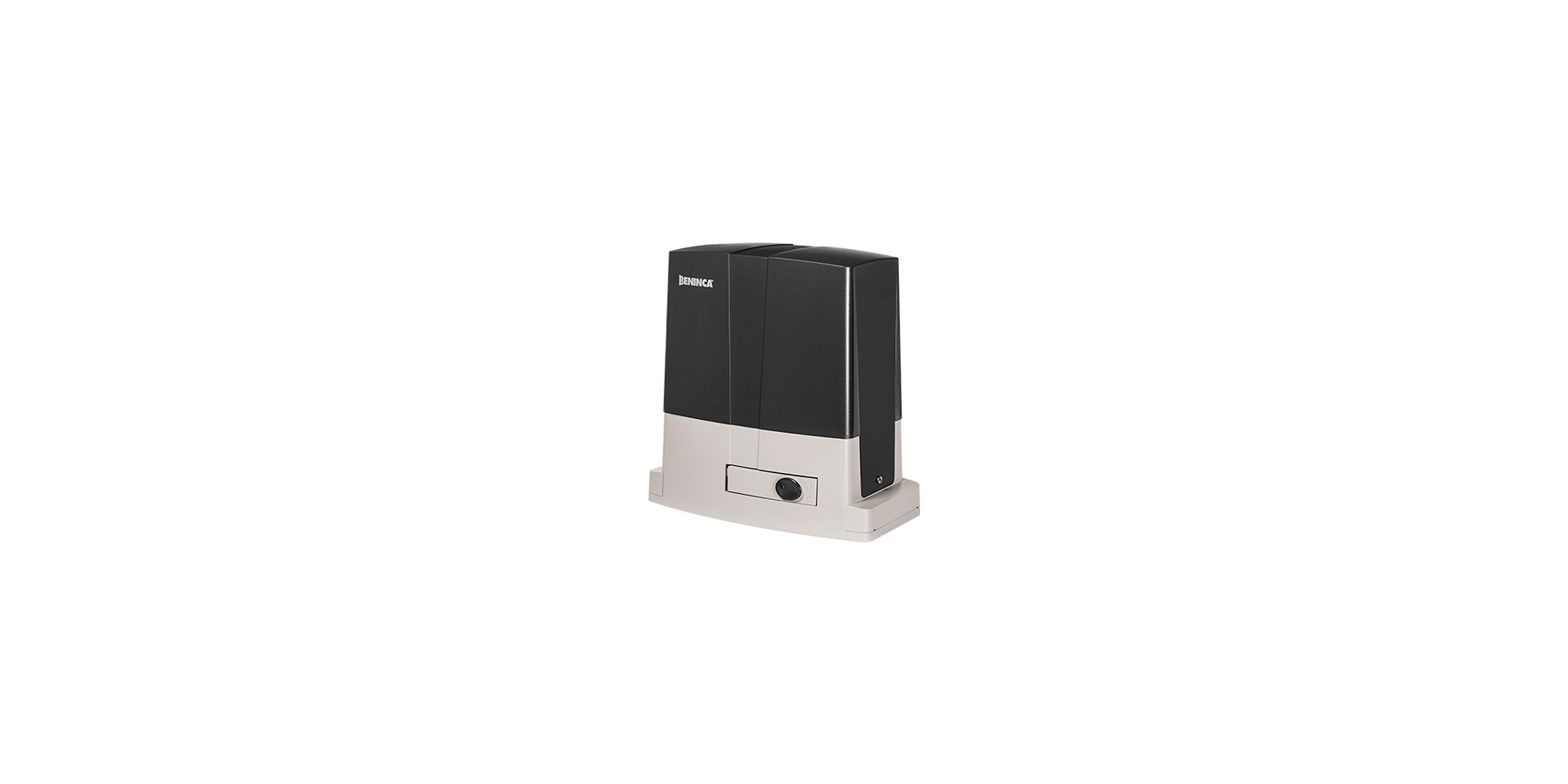

Geared motor BULL624ESA
Commercial use
24 Vdc
Up to 600 kg
Integrated device that guarantees maximum precision during the automation manoeuvring steps
Intelligent power control system that allows obtaining dynamic data through a precise calculation of the thrust. The system is able to locate any critical points and adjust the torque accordingly in relation to actual requirements and according to measured performance
433.92 MHz Receiver equipped exclusively with Advanced Rolling Code (ARC)
64 transmitters storable inside the receiver
BULL624ESA
24 Vdc | intensive use
24 Vdc gear motor for intensive use, with integrated control unit and encoder | Energy saving ESA SYSTEM | The encoder device ensures maximum safety and precision in the gate moving phases | The STC system device enables the torque management in relation to the position of the gate, which guarantees maximum safety | Amperometric sensor obstacle detection system to prevent crushing | Battery back up system ready | Metal release lever
325x100x5 mm, installation template included, motor spacing 300x75 mm, 4 holes Ø 9 mm
|
1x |
BULL624ESA 24 Vdc gear motor for intensive use, with integrated control unit and encoder |
|
1x |
PUPILLA.T Pair of adjustable photocells with three positions, power supply 14÷30 Vac/12÷30 Vdc | Option to mount 2 pairs close together without synchronization |
|
1x |
LAMPY Flashing light 12÷255 Vac/dc with integrated antenna |
|
1x |
TO.GO2VA 2-channel 433.92 MHz transmitter with Advanced Rolling Code and Rolling Code |
| Power supply | 230 Vac (50-60Hz) |
| Motor supply | 24 Vdc |
| Max absorbed current | 0.5 A |
| Maximum thrust | 857 N |
| Opening speed | 5,8 ÷ 9,75 m/min |
| Duty cycle | intensive use |
| Protection level | IP44 |
| Built-in control unit | |
| Integrated receiver | |
| Encoder | |
| Virtual encoder | |
| Magnetic limit switches | |
| Pinion for rack | M4 Z14 |
| Operating temperature | -20°C /+50°C |
| Lubrication | GREASE |
| Maximum gate weight | 600 kg |
| Weight | 11.7 kg |
| N. motors per pallet | 40 |
| Kit weight | 12.4 kg |
| N. kits per pallet | 40 |
CP.B24ESA
APPLICATION
1 actuator for sliding gates, series BULL424ESA and BULL624ESA
CONTROL UNIT POWER SUPPLY
230 Vac – 50/60 Hz
MOTORS POWER SUPPLY
24 Vdc
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz 64-code radio receiver with ARC coding | Integrated ESA SYSTEM for energy savings | Removable terminal boards | Automatic, semi-automatic and deadman’s logic | Motor limit switch inputs | Separate photocell inputs in opening-closing and photocell active in closing phases | Pedestrian, step by step and stop inputs | Input for N.C or 8K2 sensitive edge | Two outputs for configuration as gate open indicator, service light, second radio channel or area light | Photocell testing | Autosetting of operating parameters | Electronic torque adjustment with automatic calculation for each point in the stroke (STC SYSTEM) | Anti-crushing safety thanks to amperometric detection and encoder management | Adjustable slow-downs | Advantouch system to configure parameters and manage radio transmitters | Number of maneuvers | Programming access password | Maintenance warning
