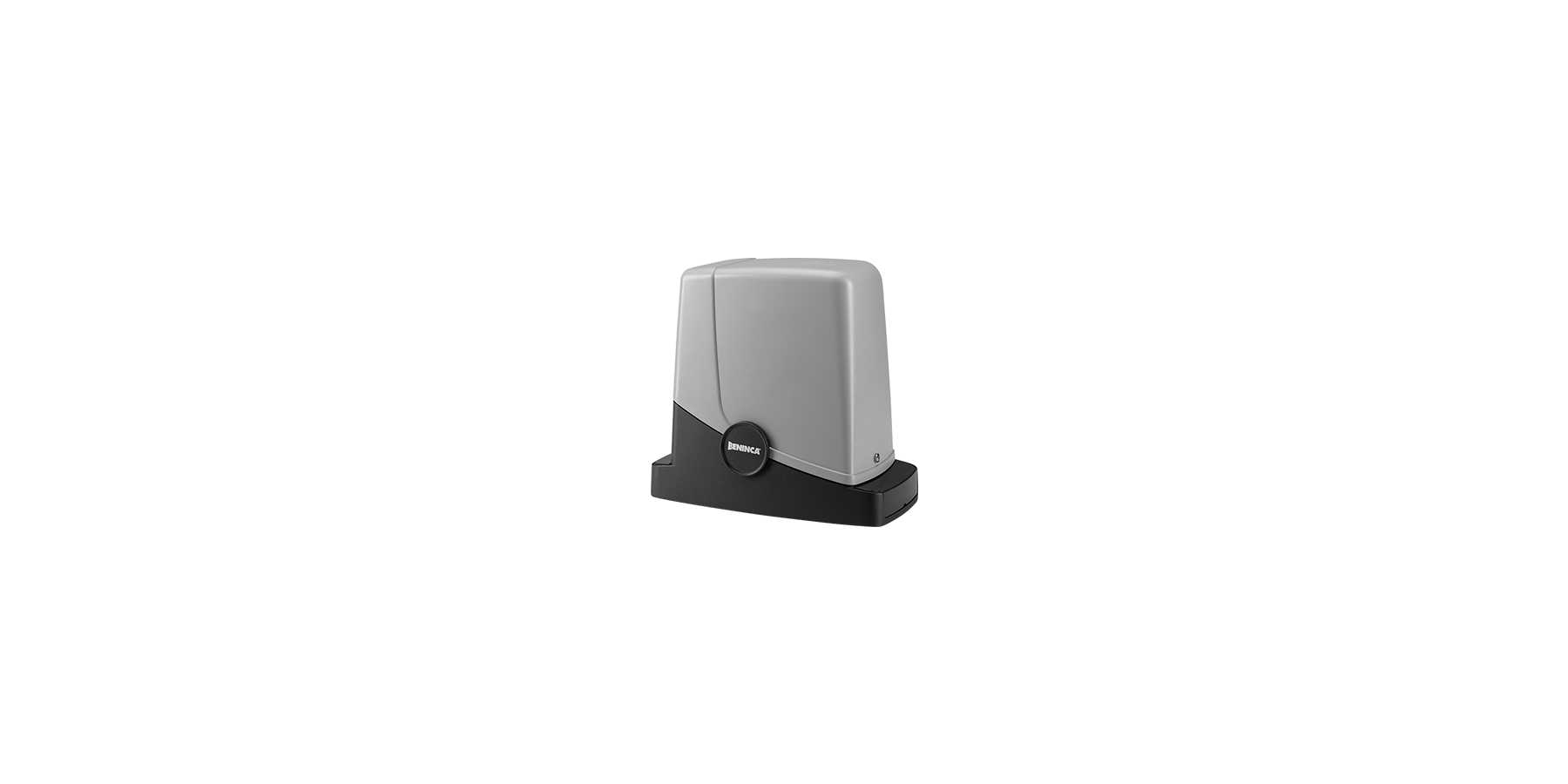

Geared motor PONY

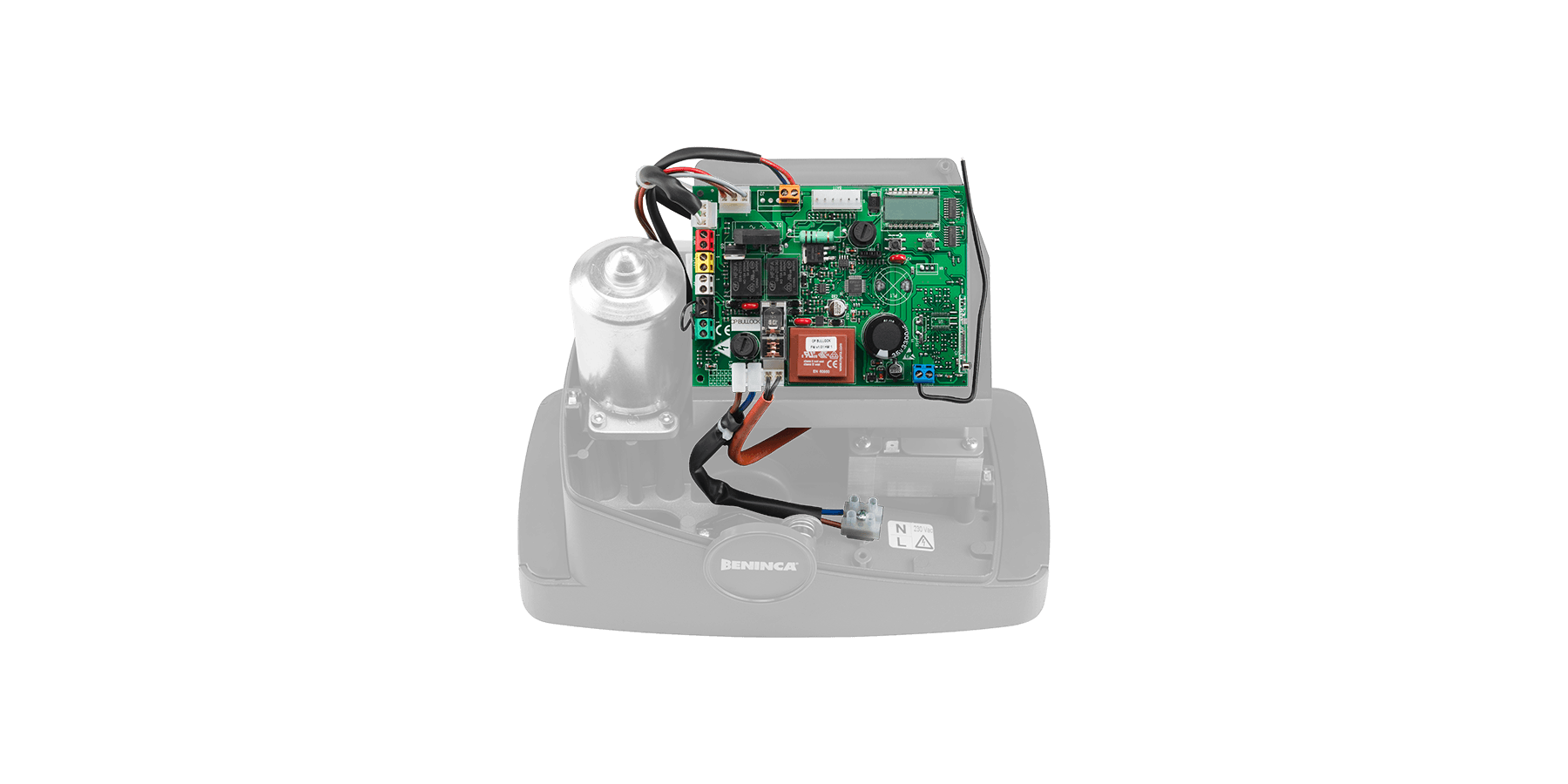

24 Vdc gear motor with integrated control unit

Residential use

24 Vdc

Up to 400 kg

64 transmitters storable inside the receiver

PONY

24 Vdc

24 Vdc gear motor with integrated control unit | Energy saving ESA SYSTEM | Amperometric sensor obstacle detection system to prevent crushing | Battery back up system ready | The control unit is positioned in such a way as to make programming operations simple, easy and immediate

PONY 1x

PONY

24 Vdc gear motor with integrated control unit

PUPILLA.T 1x

PUPILLA.T

Pair of adjustable photocells with three positions, power supply 14÷30 Vac/12÷30 Vdc | Option to mount 2 pairs close together without synchronization

TO.GO2VA 1x

TO.GO2VA

2-channel 433.92 MHz transmitter with Advanced Rolling Code and Rolling Code

Power supply 230 Vac (50-60Hz)
Motor supply 24 Vdc
Max absorbed current 0.6 A
Power consumption in stand-by ≤ 1.5 W
Maximum thrust 321 N
Opening speed 10 m/min
Duty cycle 30%
Protection level IP44
Version KIT only
Built-in control unit
Integrated receiver
Encoder
Virtual encoder
Magnetic limit switches
Pinion for rack M4 Z14
Operating temperature -20°C /+50°C
Lubrication GREASE
Maximum gate weight 400 kg
Weight 8.1 kg
N. motors per pallet ---
Kit weight 8.5 kg
N. kits per pallet 40

CP.PONY

APPLICATION

1 actuator for sliding gates, series PONY

CONTROL UNIT POWER SUPPLY

230 Vac – 50/60 Hz

MOTORS POWER SUPPLY

24 Vdc

MAIN FUNCTIONS

Integrated LCD display | Integrated 433.92 MHz 64-code radio receiver with 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code) | Integrated ESA SYSTEM for energy savings | Coloured fixed terminal boards | Automatic and semi-automatic logic | Motor limit switch inputs | Step by step and stop inputs | Programmable photocell inputs active in opening-closing or only in closing phases | Photocell testing | Autosetting of operation parameters | Electronic torque adjustment | Anti-crushing safety thanks to amperometric detection | Adjustable slow-downs | Option of setting pedestrian opening from radio transmitters

Technical Drawing PONY
