Geared motor JM.3SE
Residential use
Sectional garage doors
24 Vdc
Up to 11 ㎡
Integrated device that guarantees maximum precision during the automation manoeuvring steps
Intelligent power control system that allows obtaining dynamic data through a precise calculation of the thrust. The system is able to locate any critical points and adjust the torque accordingly in relation to actual requirements and according to measured performance
64 transmitters storable inside the receiver
Standby power consumption complies with European regulation (EU) 2023/826
JM.3SE
24 Vdc | intensive use

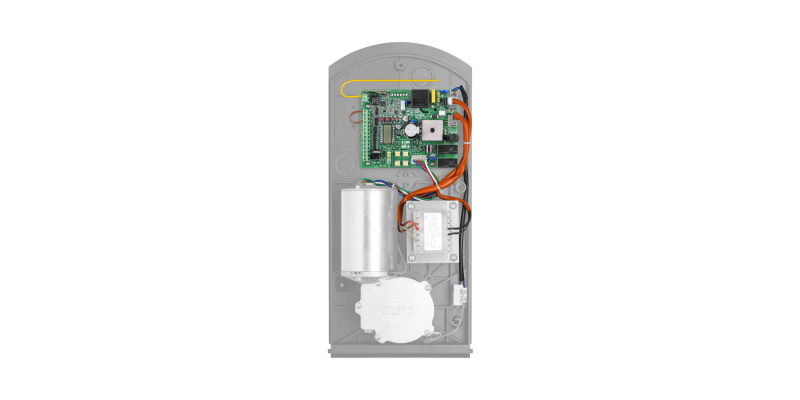

24 Vdc gear motor for intensive use with built-in control unit and encoder | Standby power consumption complies with European regulation (EU) 2023/826 | Adjustable stroke with one mechanical stop included in the belt tracks and two in the chain tracks | Anti-crushing system with amperometric detection | Advanced electronics with display and LED courtesy light | The encoder device guarantees maximum safety and precision during door movement | STC System device that allows torque delivery to be managed in relation to the door position, ensuring maximum safety | Quick hooking system for connecting the arm to the door plate
Rail not included
| Use | residential |
| Power supply | 230 Vac (50-60Hz) |
| Motor supply | 24 Vdc |
| Max absorbed current | 0.7 A |
| Thrust | 600 N |
| Opening speed | 4.5 ÷ 8.9 m/min |
| Duty cycle | intensive use |
| Protection level | IP40 |
| Built-in control unit | |
| Integrated receiver | |
| Encoder | |
| Limit switch | electronic with encoder |
| Operating temperature | -20°C /+50°C |
| Door surface area | 11 ㎡/max |
| Weight | 5 kg |
| N. motors per pallet | 50 |
CP.J4-SE
APPLICATION
1 actuator series JM.3SE, JM.4SE
CONTROL UNIT POWER SUPPLY
230 Vac - 50/60 Hz
MOTORS POWER SUPPLY
24 Vdc / 8.5 A
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz radio receiver with 64 codes and 3 radio encodings (Advanced Rolling Code, Rolling Code, Fixed Code) | Integrated ESA+ device for energy saving | Fixed terminal blocks | Automatic and semi-automatic operating logic | Step-by-step inputs, open, close, stop, photocell | Input for N.C. or 8K2 sensitive edge | Output configurable as gate open indicator light, courtesy light, second radio channel or zone light | Output for flashing light connection | Photocell test | Operating parameter autoset | Electronic torque adjustment with automatic calculation for each point of the stroke (STC SYSTEM) | Anti-crushing safety device with amperometric detection and encoder management | Option to set slow start for 2 seconds (SOFT START) | Adjustable slowdowns | Number of operations | Programming access password | Maintenance warning | Standby power consumption complies with European regulation (EU) 2023/826
