Geared motor VN.MT40V

400 Vac gear motor with manual chain movement and 1/40 reduction rates
VN.MT40V | Automations for garage & industrial doors | Automatismi Benincà
Download the instruction manual

Industrial use

Large sectional doors, rolling doors and unbalanced shutters

400 Vac | three phase

Oil lubricated motors guarantee the maximum lifespan and high performances

VN.MT40V

400 Vac | three-phase

400 Vac gear motor with manual chain movement and 1/40 reduction rates | Ventilated electric motor ideal for intensive use and equipped with electric brake | Two accessories are available for chain drives with reduction rates 1:1 (offset installation of motor) or 1:1.8 (torque or speed multiplier) | Maximum safety guaranteed during rapid release phases, thanks to a micro-switch that cuts the power supply to the motor | Oil lubricated reductions with hardened steel screw and bronze gears guarantee high performance, maximum reliability and silent operation | 4 micrometrically adjustable limit switches

Power supply 400 Vac (50-60Hz)
Motor supply 400 Vac
Max absorbed current 2.2 A
Max torque 340 Nm
Maximum output rotations 38
Output speed 24 r.p.m.
Shaft hole 1” (25.4 mm)
Limit switch reduction ratio 1/40
Duty cycle intensive use
Protection level IP40
Built-in control unit
Integrated receiver
Encoder
Operating temperature -20°C /+50°C
Lubrication OIL
Weight 22.9 kg
N. motors per pallet 16

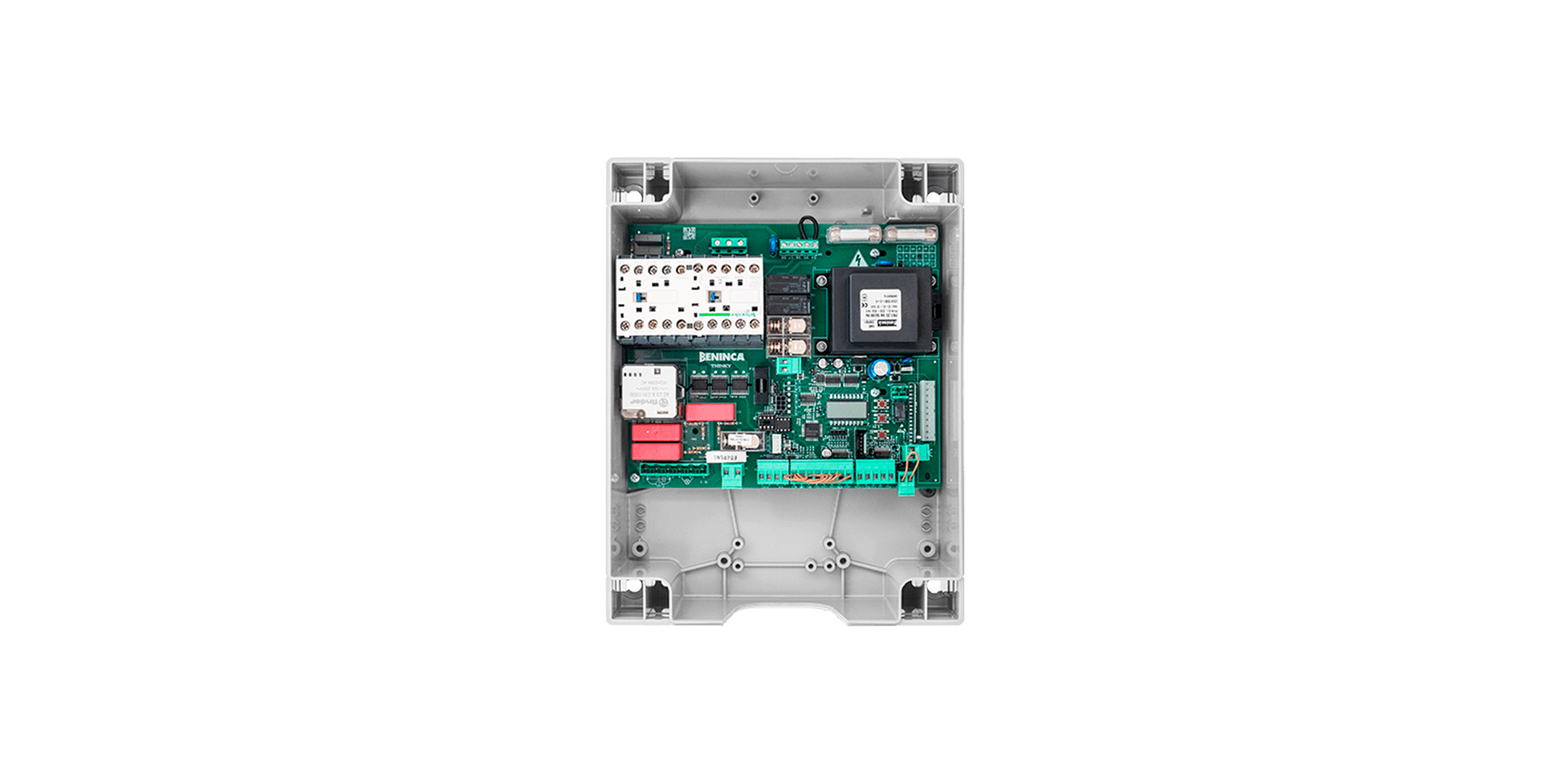

START

APPLICATION

1 actuator for sectional doors and rolling doors, folding doors with more than two sections, unbalanced shutters and industrial sliding gates

CONTROL UNIT POWER SUPPLY

230 Vac single-phase or 400 Vac three-phase

MOTORS POWER SUPPLY

230 Vac / 900 W or 400 Vac / 2200 W

MAIN FUNCTIONS

Only deadman’s logic operation | Fixed terminal boards | Motor limit switch inputs | Open, close and stop inputs | Open and close buttons integrated into the control unit | Output for connecting flashing light and auxiliary condenser for starting the motor

THINKY

APPLICATION

1 actuator for sectional doors and rolling doors, folding doors with more than two sections, unbalanced shutters and industrial sliding gates

CONTROL UNIT POWER SUPPLY

230 Vac single-phase or 400 Vac three-phase

MOTORS POWER SUPPLY

230 Vac / 800 W or 400 Vac / 2200 W

MAIN FUNCTIONS

Integrated LCD display | Integrated 433.92 MHz 64-code radio receiver with ARC and predesigned for plug-in radio receiver | Predesigned for connection to absolute encoder and quick wiring (VN “ESW” motors) | Autosetting of operating parameters with motors equipped with absolute encoder (VN “ESW” motors) | Removable terminal boards | Automatic, semi-automatic and deadman’s logic | Motor limit switch inputs | Open, close, step by step, pedestrian and stop inputs | Inputs for 4 pairs of photocells (configurable as active in opening-closing or in closing phases) and equipped with PHOTO TEST logic | Input for N.C or 8K2 sensitive edge | Input for safety sensor | Output configurable as gate open indicator, second radio channel, service light and area light | Output configurable as gate open indicator or photocell testing output | Output for connecting flashing light | Protection against phase failure and exceeding motor current threshold | Advantouch system to configure parameters and manage radio transmitters | Number of maneuvers | Programming access password | Maintenance warning

Technical Drawing VN.MT40V
Terminal Diagram VN.MT40V
