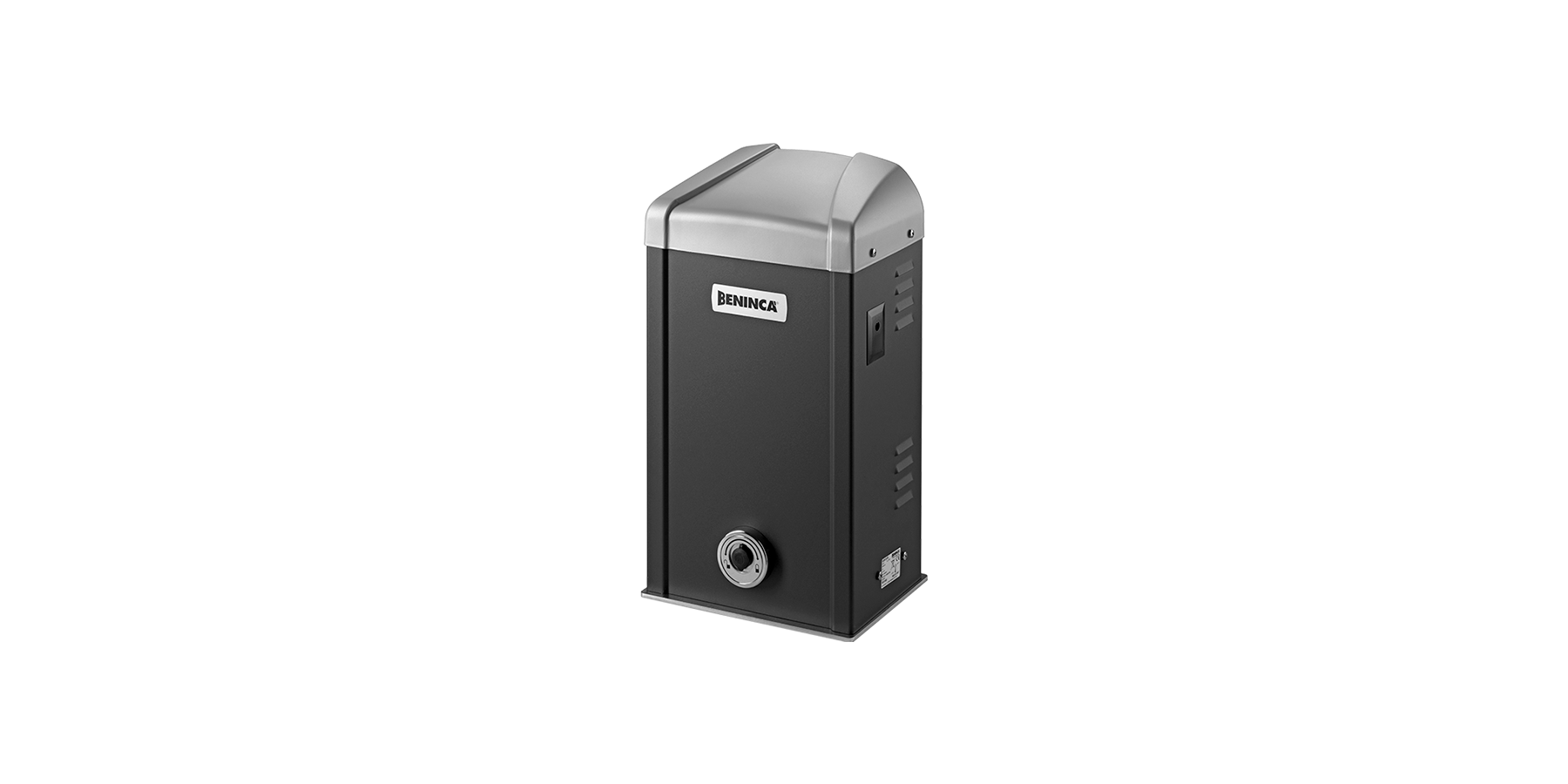

Geared motor BISON25 OTI

230 Vac gear motor for intensive use with integrated control unit, encoder and inverter

Industrial use

230 Vac | three phase

Up to 2500 kg

Integrated device that guarantees maximum precision during the automation manoeuvring steps

The inverter technology allows the speed of the motor to be gradually varied, during both acceleration and deceleration, as well as guaranteeing a more precise adjustment of the gate movement phases and a greater anti-crushing safety

Oil lubricated motors guarantee the maximum lifespan and high performances

64 transmitters storable inside the receiver

BISON25 OTI

230 Vac | three-phase, intensive use

230 Vac gear motor for intensive use with integrated control unit, encoder and inverter | Self-ventilated motor for more intense use | The encoder device ensures precision in the gate moving phases | Full metal mechanics and oil lubrication with maximum efficiency even at low temperatures | Casing protective treatment and paint | The inverter technology allows the speed of the motor to be gradually varied, during both acceleration and deceleration, as well as guaranteeing a more precise adjustment of the gate movement phases and a greater anti-crushing safety | Optional built-in FTC.S photocells, available as accessory

Foundation plate with anchor bolts included. Motor and floor fixing distance 269x114 mm n.4 Ø 12 mm

Power supply 230 Vac (50-60Hz)
Motor supply 230 Vac
Max absorbed current 8 A
Maximum thrust 2500 N
Opening speed 19 m/min
Duty cycle intensive use
Protection level IP44
Built-in control unit
Integrated receiver
Encoder
Virtual encoder
Magnetic limit switches
Pinion for rack M4 Z18
Operating temperature -20°C /+50°C
Lubrication OIL
Maximum gate weight 2500 kg
Weight 41.2 kg
N. motors per pallet 8

CP.BISON OTI

APPLICATION

1 actuator for sliding gates, series BISON25 OTI, BISON35 OTI and BISON45 OTI

CONTROL UNIT POWER SUPPLY

230 Vac / 750 W three-phase with inverter or 400 Vac / 1500 W three-phase with inverter

MOTORS POWER SUPPLY

220 Vac three-phase with inverter or 380 Vac three-phase with inverter

MAIN FUNCTIONS

Integrated LCD display | Integrated 433.92 MHz 64-code radio receiver with 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal boards | Automatic, semi-automatic and deadman’s logic | Encoder input to detect obstacles | Motor limit switch inputs | Open, close, pedestrian, step by step and stop inputs | Inputs for 4 pairs of photocells (programmable as active in opening-closing and in closing phases) and equipped with PHOTO TEST logic | Input for N.C or 8K2 sensitive edge | Input for safety sensor | Predesigned for inverter connection | Output for gate open indicator | Output configurable for service light, area light or second radio channel | Photocell testing output | Autosetting of operating parameters | Electronic motor torque adjustment | Adjustable slow-down systems | Electronic braking guarantees a precise stop even with heavy doors | Advantouch system to configure parameters and manage radio transmitters | Number of maneuvers | Programming access password | Maintenance warning

Technical Drawing BISON25 OTI
