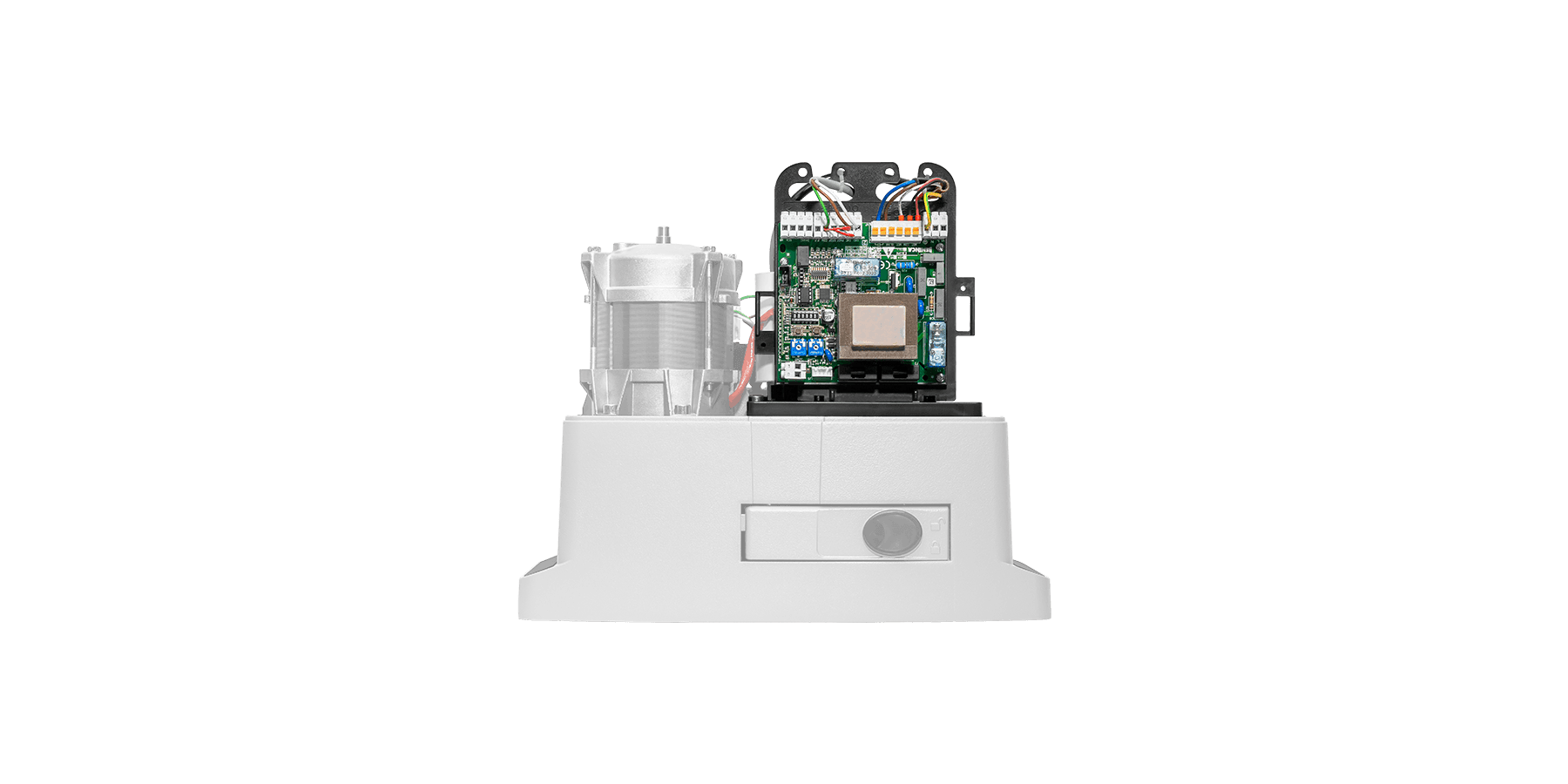

Geared motor BULL5M

230 Vac gear motor with integrated control unit

Residential use

230 Vac

Up to 600 kg

433.92 MHz Receiver equipped exclusively with Advanced Rolling Code (ARC)

64 transmitters storable inside the receiver

BULL5M

230 Vac

230 Vac gear motor with integrated control unit | Optional encoder connection using MAG.E accessory | The encoder device ensures crush prevention and precision in the gate moving phases | Metal release lever | Magnetic limit switches accessory available (MLS)

325x100x5 mm, installation template included, motor spacing 300x75 mm, 4 holes Ø 9 mm

BULL5M 1x

BULL5M

230 Vac gear motor with integrated control unit

PUPILLA.T 1x

PUPILLA.T

Pair of adjustable photocells with three positions, power supply 14÷30 Vac/12÷30 Vdc | Option to mount 2 pairs close together without synchronization

LAMPY 1x

LAMPY

Flashing light 12÷255 Vac/dc with integrated antenna

TO.GO2VA 1x

TO.GO2VA

2-channel 433.92 MHz transmitter with Advanced Rolling Code and Rolling Code

Power supply 230 Vac (50-60Hz)
Motor supply 230 Vac
Max absorbed current 1.3 A
Maximum thrust 650 N
Opening speed 10.5 m/min
Duty cycle 30%
Protection level IP44
Built-in control unit
Integrated receiver
Encoder
Virtual encoder
Magnetic limit switches
Pinion for rack M4 Z18
Operating temperature -20°C /+50°C
Lubrication GREASE
Maximum gate weight 600 kg
Weight 11.3 kg
N. motors per pallet 40
Kit weight 12.1 kg
N. kits per pallet 40

CP.CORE

APPLICATION

1 actuator of the series BULL6M for sliding gates

CONTROL UNIT POWER SUPPLY

230 Vac – 50/60 Hz

MOTORS POWER SUPPLY

230 Vdc / 750 W

MAIN FUNCTIONS

Parameter and operation logic regulations through trimmers and dip-switches | Integrated 433.92 MHz 64-code radio receiver with ARC coding | Removable terminal boards | Automatic, semi-automatic and deadman’s logic | Encoder (MAG.E) output for detecting obstacles | Motor limit switch inputs | Step by step, pedestrian and stop inputs | Step by step input configurable as open | Stop input configurable as close or pedestrian | Photocell input programmable as active in opening-closing and in closing phases | Output as gate open indicator | Autosetting of operation and slow-down parameters | Adjustable slow-downs | Electronic torque adjustment for motor on 5 levels | Possibility to manage radio transmitters memorised on integrated receiver with Advantouch system

Technical Drawing BULL5M
