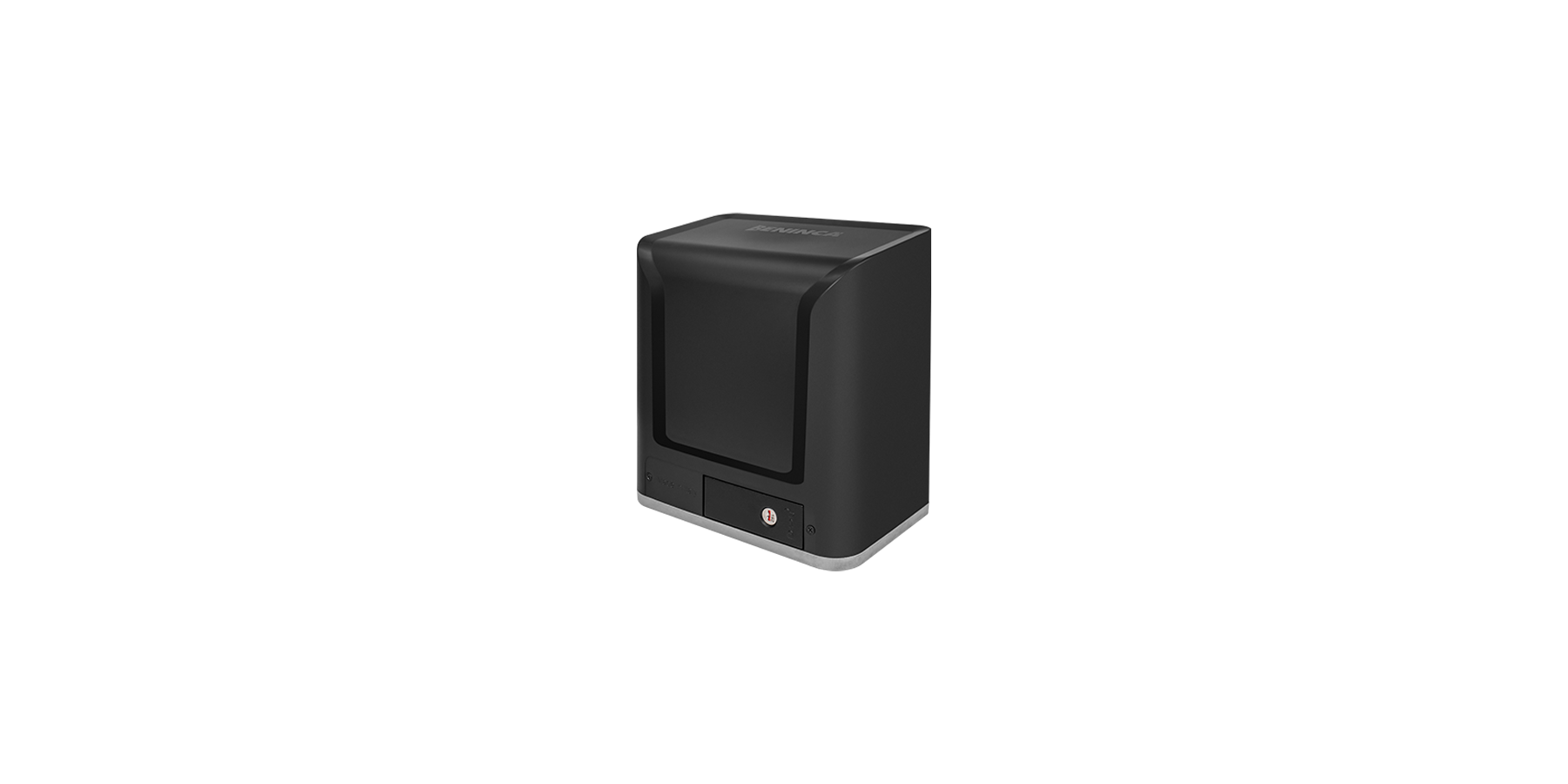

Geared motor WOLF8M
Commercial use
230 Vac
Up to 800 kg
Integrated device that guarantees maximum precision during the automation manoeuvring steps
433.92 MHz Receiver equipped exclusively with Advanced Rolling Code (ARC)
Prepared for the connection of X.BE (KNX) and Q.BE (MQTT) accessories
Designed to manage the control unit using the BeUP app and pro.UP accessory which, by recreating the control unit menu, makes it possible to adjust parameters and logic, read error messages and update the firmware. It is possible to perform remote diagnostics, check the status of the gate and send commands
64 transmitters storable inside the receiver
Standby power consumption complies with European regulation (EU) 2023/826
WOLF8M
230 Vac

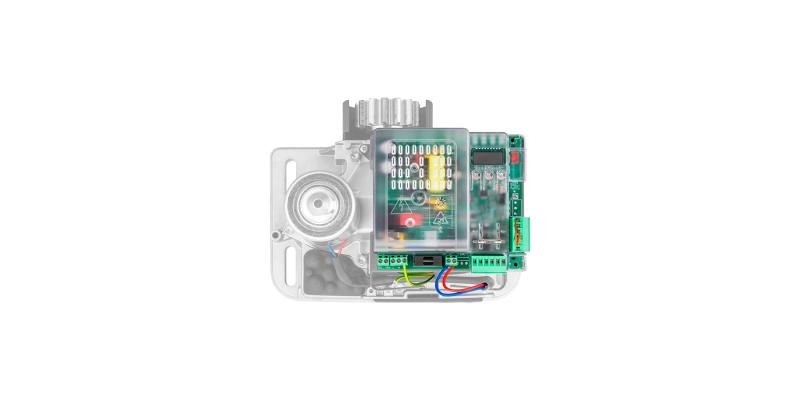

230 Vac gear motor with integrated control unit and encoder | Standby power consumption complies with European Regulation (EU) 2023/826 | Switching power supply 230 Vac which reduces energy consumption and ensures a long lifespan of the actuator | Robust and compact (25x16 cm) | The control unit, located at the top of the motor, facilitates wiring operations | The encoder device guarantees anti-crushing safety and precision during gate movement | Designed for the connection of X.BE (KNX) and Q.BE (MQTT) accessories and PRO.UP interface | Equipped with integrated magnetic limit switches
Reinforced foundation plate Dima included. Dimensions 256x160x2 mm, motor fixing distance 210x88 mm, 4 holes Ø 10.5 mm
| Use | commercial |
| Power supply | 115 / 230 Vac (50-60Hz) |
| Motor supply | 230 Vac |
| Max absorbed current | 4.9 / 2.6 A |
| Maximum thrust | 940 N |
| Opening speed | 10.5 m/min |
| Duty cycle | 30% |
| Protection level | IP44 |
| Built-in control unit | |
| Integrated receiver | |
| Encoder | |
| Virtual encoder | |
| Magnetic limit switches | |
| Pinion for rack | M4 Z18 |
| Operating temperature | -20°C /+50°C |
| Lubrication | GREASE |
| Maximum gate weight | 800 kg |
| Weight | 10.4 kg |
CP.BULL8 SE
APPLICATION
1 actuator for sliding door series WOLF8M, BULL8M SE and BULL8 OM SE
CONTROL UNIT POWER SUPPLY
230 Vac - 50/60 Hz
MOTORS POWER SUPPLY
230 Vac / 2,6 A
MAIN FUNCTIONS
Integrated LCD display | Integrated radio receiver 433.92 MHz 64 codes with ARC coding | Removable terminal boards | Automatic, semi-automatic and Deadman logic | 7 multifunction inputs (on the WOLF8M) and 5 multifunction inputs (on the BULL8M SE and BULL8 OM SE) provide multiple configuration options for each wired input, including: step-by-step, open, close, stop, pedestrian, photocell active during opening, photocell active during closing, and N.C. safety edge. | 2 motor limit switch inputs (BULL8M SE and BULL8 OM SE only) | Input for N.C or 8K2 sensitive edge | Two outputs configurable as gate open indicator light, courtesy light, area light, second radio channel, photocell test, flashing light, alarm contact | Output for connecting flashing light | Autosetting of operating parameters | Independent electronic adjustment of motor torque during opening and closing | Independently adjustable slowdown during opening and closing | 3 selectable slowdown modes to suit different applications | Electronic braking | Built-in energy saving system ESA+ | Predesigned for the operation of opposed sliding gates through SIS synchronisation board (optional) | Designed for connection of X.BE (KNX) and Q.BE (MQTT) accessories | Configuration, diagnostics, firmware update, and remote control management via the BeUP app, using the PRO.UP accessory | Number of manoeuvres | Programming access password | Maintenance warning | Standby power consumption complies with European Regulation (EU) 2023/826
