CP.B24 TURBO | Internal control units | Automatismi Benincà
Download the instruction manual

Encoder signal recreated by the control unit beginning with the measurements of electric motor operation parameters. It is possible to manage slowing optimally and trace gate travel while providing the torque data in relation to its position to guarantee maximum safety

Intelligent power control system that allows obtaining dynamic data through a precise calculation of the thrust. The system is able to locate any critical points and adjust the torque accordingly in relation to actual requirements and according to measured performance

433.92 MHz Receiver equipped exclusively with Advanced Rolling Code (ARC)

This function automatically adjusts the operational parameters for simplifying the system’s installation and testing operations

This is used to set the number of cycles after which the required maintenance of the system is signaled

This allows a code to be entered for protection of the control unit programming, to prevent access to menus and modification of parameters

This is a protocol for connection with KNX home automation systems by connection of the X.BE card (optional)

Predisposition to manage the control unit using the BeUP app and pro.UP accessory which, by recreating the control unit menu, makes it possible to adjust parameters and logic, read error messages and update the firmware. It is possible to perform remote diagnostics, check the status of the gate and send commands.

512 transmitters storable inside the receiver

CP.B24 TURBO

APPLICATION

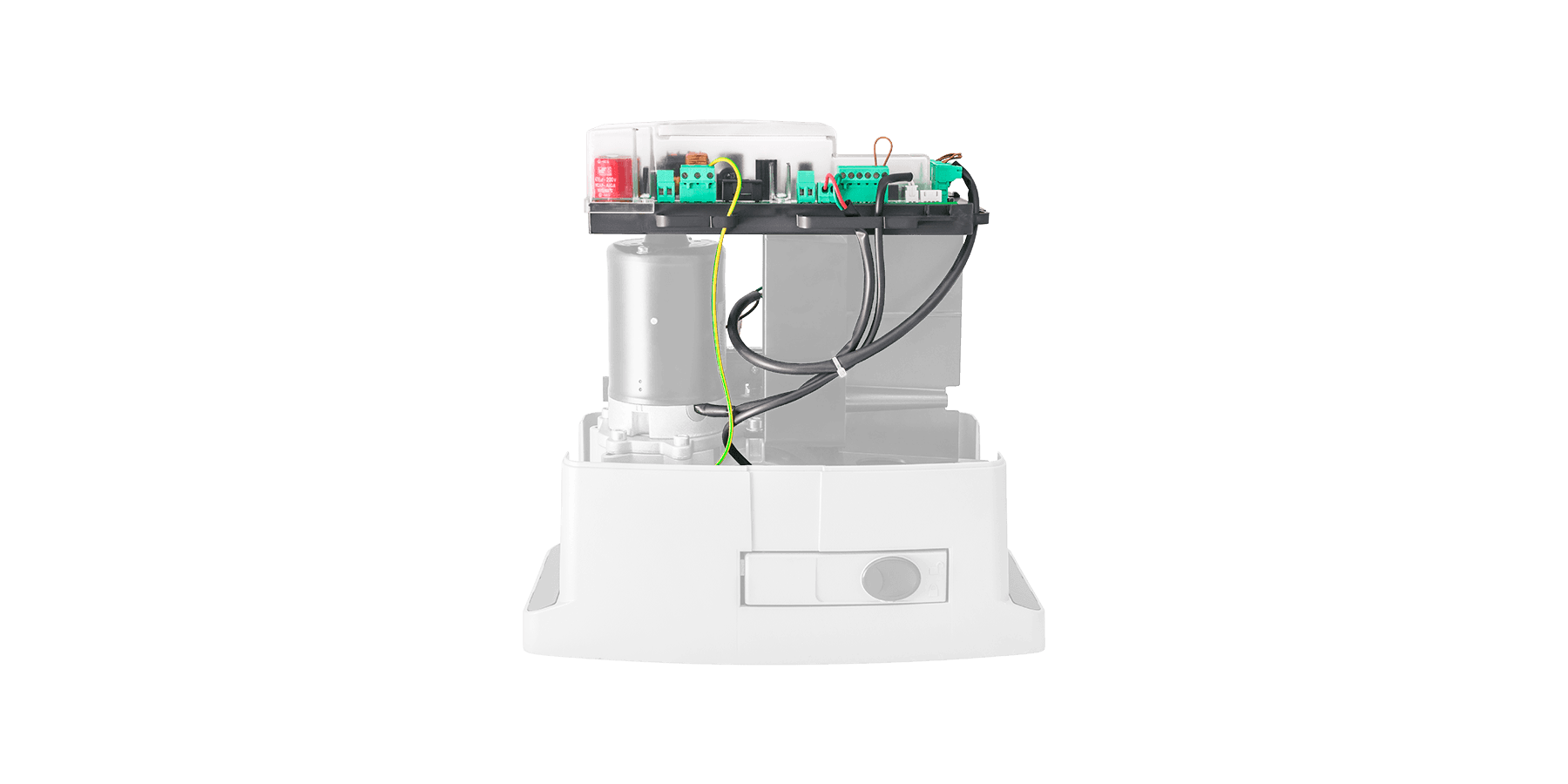

1 actuator for sliding gates, series BULL624/1224 TURBO

CONTROL UNIT POWER SUPPLY

115 or 230 Vac (selectable) 50/60Hz

MOTORS POWER SUPPLY

24 Vdc / 20 A

MAIN FUNCTIONS

Integrated LCD display | Integrated 433.92 MHz 512-code radio receiver with ARC coding | Removable terminal boards | Automatic, semi-automatic and deadman’s logic | Motor limit switch inputs | Step by step, open, close and stop inputs | Photocell input (PHO) configurable as active in opening-closing or only in closing phases | Photocell input (PHC) active both in opening and closing phases | Input for N.C or 8K2 sensitive edge | Input for safety sensor | OPEN input configurable as pedestrian | Two outputs configurable as open gate indicator, courtesy light, zone light, second channel radio, photocell testing, flashing light, alarm contact | Output for connecting flashing light | Predesigned for the operation of opposed sliding gates through SIS synchronisation board (optional) | Predesigned for KNX connection through X.BE board (optional) | Designed for managing, configuring, diagnosing and updating firmware through the BeUP app, using the PRO.UP accessory | Autosetting of operating parameters | Electronic torque adjustment with automatic calculation for each point in the stroke (STC SYSTEM) | Anti-crushing safety thanks to amperometric obstacle detection | Virtual encoder | Adjustable slow-downs | Advantouch system to configure parameters and manage radio transmitters | Number of maneuvers | Programming access password | Maintenance warning | Integrated battery charger, compatible with battery models DA.BT2/DA.BT6

Technical Drawing CP.B24 TURBO
Terminal Diagram CP.B24 TURBO
