Geared motor ZED.RIE

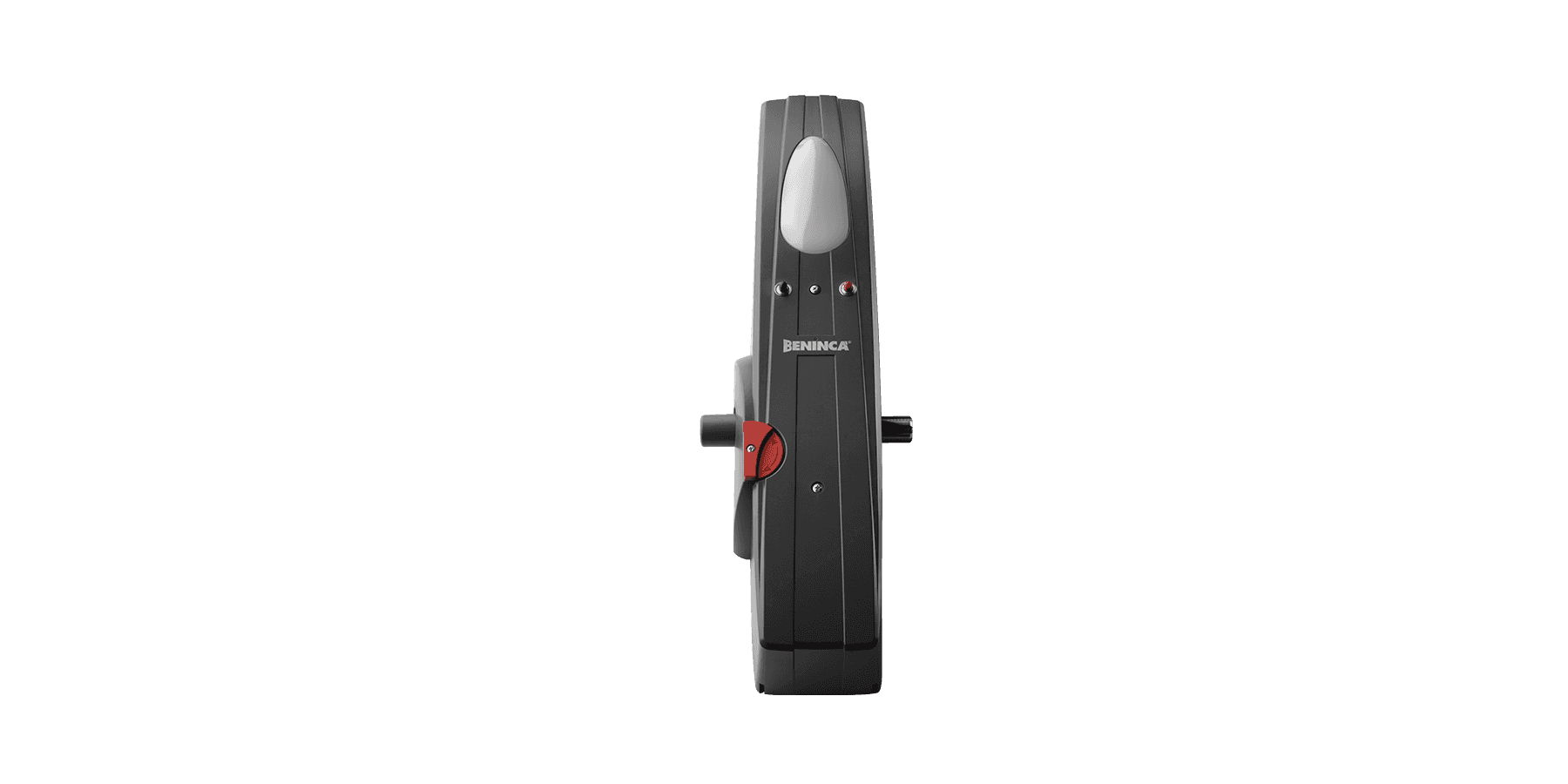

230 Vac gear motor with electronic control unit with receiver and integrated encoder
ZED.RIE | Automations for garage & industrial doors | Automatismi Benincà
Download the instruction manual

Residential use

Commercial use

Counterweight garage doors

230 Vac

Up to 11 ㎡

Integrated device that guarantees maximum precision during the automation manoeuvring steps

433.92 MHz Receiver equipped exclusively with Advanced Rolling Code (ARC)

64 transmitters storable inside the receiver

ZED.RIE

230 Vac

230 Vac gear motor with electronic control unit with receiver and integrated encoder | The encoder device ensures crush prevention and precision in the door moving phases | Quieter thanks to the control unit with autotransformer created to reduce door vibrations to a minimum | Built-in courtesy light, limit switch and control buttons

Power supply 230 Vac (50-60Hz)
Motor supply 230 Vac
Max absorbed current 1,5 A
Torque 350 Nm
Opening time 14”
Duty cycle 30%
Protection level IP40
Built-in control unit
Integrated receiver
Encoder
Operating temperature -20°C /+50°C
Max. door surface area 1 motor (2 motors) 11 ㎡ (15 ㎡)
Weight 10 kg
N. motors per pallet 50

CP.ZED-AUTR

APPLICATION

1 or 2 actuators series ZED.RIE, ZED.LRIE

CONTROL UNIT POWER SUPPLY

230 Vac - 50/60 Hz

MOTORS POWER SUPPLY

230 Vac / 300 W + 300 W

MAIN FUNCTIONS

Integrated LCD display | Integrated 433.92 MHz 64-code radio receiver with ARC coding | Removable terminal boards | Automatic, semi-automatic and deadman’s logic | Encoder input to detect obstacles | Separate limit switch inputs for one motor | Close, step by step and stop inputs | Input for N.C or 8K2 sensitive edge | Photocell input programmable as active in opening-closing or in closing phases | Outputs for 24 Vdc service light | Autosetting of operating parameters (with ZED series motors equipped with encoder) | Electromechanical torque adjustment on 4 levels | Autosetting of operation and slow-down parameters | Adjustable slow-downs | Advantouch system to configure parameters and manage radio transmitters | Number of maneuvers | Programming access password | Maintenance warning
