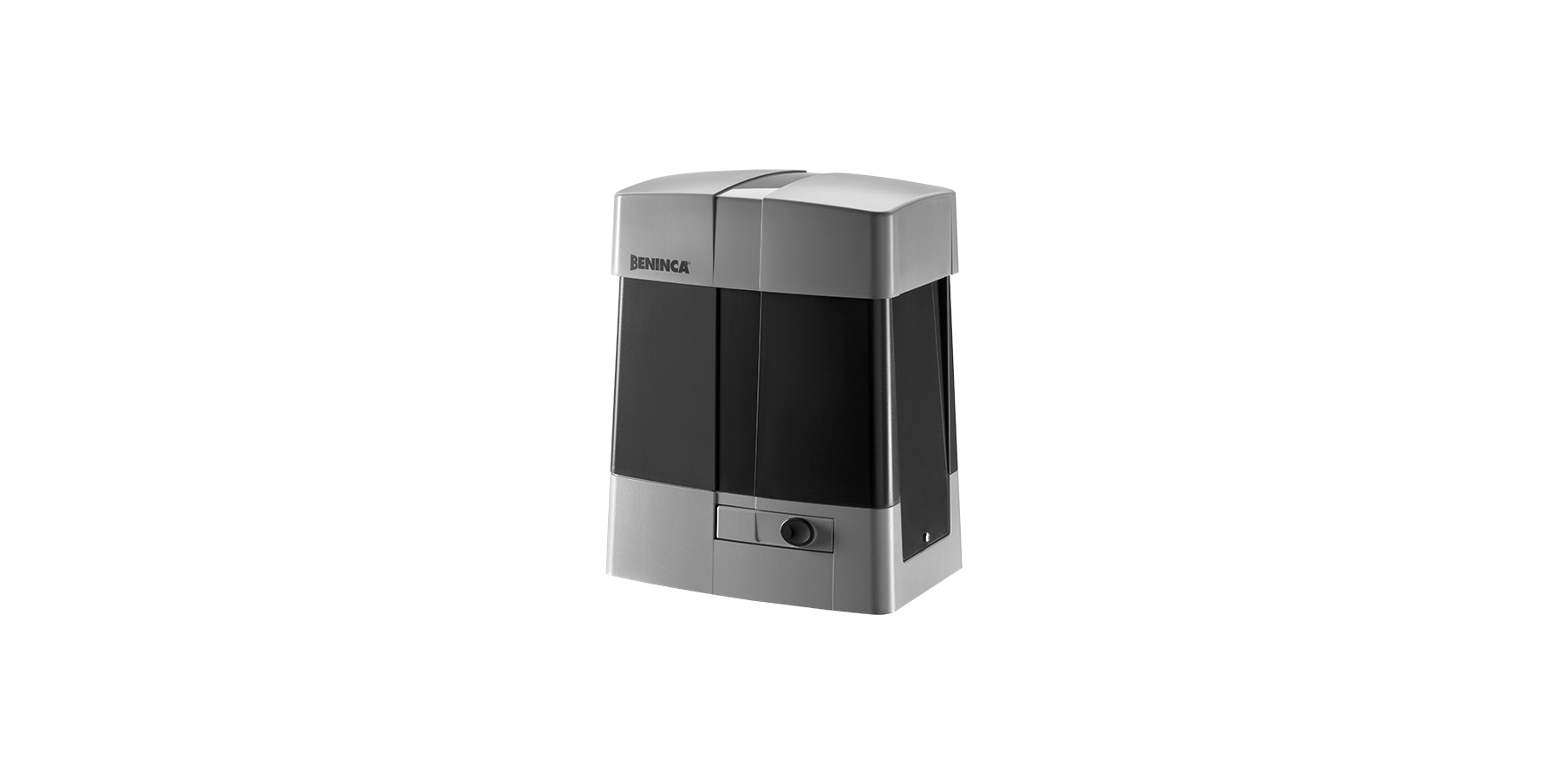

Geared motor BULL HE REVERSE

230 Vac gear motor for intensive use, with integrated control unit and encoder

Commercial use

Industrial use

230 Vac

Up to 1400 kg

Integrated device that guarantees maximum precision during the automation manoeuvring steps

433.92 MHz Receiver equipped exclusively with Advanced Rolling Code (ARC)

64 transmitters storable inside the receiver

BULL HE REVERSE

230 Vac | very intensive use

230 Vac gear motor for intensive use, with integrated control unit and encoder | Self-ventilated motor for more intense use | Reversible with electric brake both in the opening and closing phases, ideal for commercial use | The encoder device ensures maximum safety and precision in the gate moving phases | Metal release lever | Vandal-proof protection case made of steel (optional)

Foundation plate with anchor bolts included. Motor and floor fixing distance 269x106 mm n.4 Ø 12 mm

Power supply 230 Vac (50-60Hz)
Motor supply 230 Vac
Max absorbed current 3 A
Maximum thrust 550 N
Opening speed 13.5 m/min
Duty cycle 80%
Protection level IP44
Built-in control unit
Integrated receiver
Encoder
Virtual encoder
Magnetic limit switches
Pinion for rack M4 Z18
Operating temperature -20°C /+50°C
Lubrication GREASE
Maximum gate weight 1400 kg
Weight 21.4 kg
N. motors per pallet 20

CP.BULL-REV

APPLICATION

1 actuator for sliding gates, series BULL HE

CONTROL UNIT POWER SUPPLY

230 Vac – 50/60 Hz

MOTORS POWER SUPPLY

230 Vac / 1000 W

MAIN FUNCTIONS

Integrated LCD display | Integrated 433.92 MHz 64-code radio receiver with ARC | Removable terminal boards | Automatic, semi-automatic and deadman’s logic | Encoder input to detect obstacles | Motor limit switch inputs | Open, close, pedestrian, step by step and stop inputs | Photocell input (PHOT O) programmable as active in opening-closing and in closing phases | Photocell input (PHOT C) programmable as active in opening-closing phases | Input for N.C or 8K2 sensitive edge | Output for configuration as gate open indicator, service light, or second radio channel | Photocell testing output | Autosetting of operating parameters | Electronic motor torque adjustment | Adjustable slow-down systems | Electronic braking guarantees a precise stop even with heavy doors | Advantouch system to configure parameters and manage radio transmitters | Number of maneuvers | Programming access password | Maintenance warning

Technical Drawing BULL HE REVERSE
