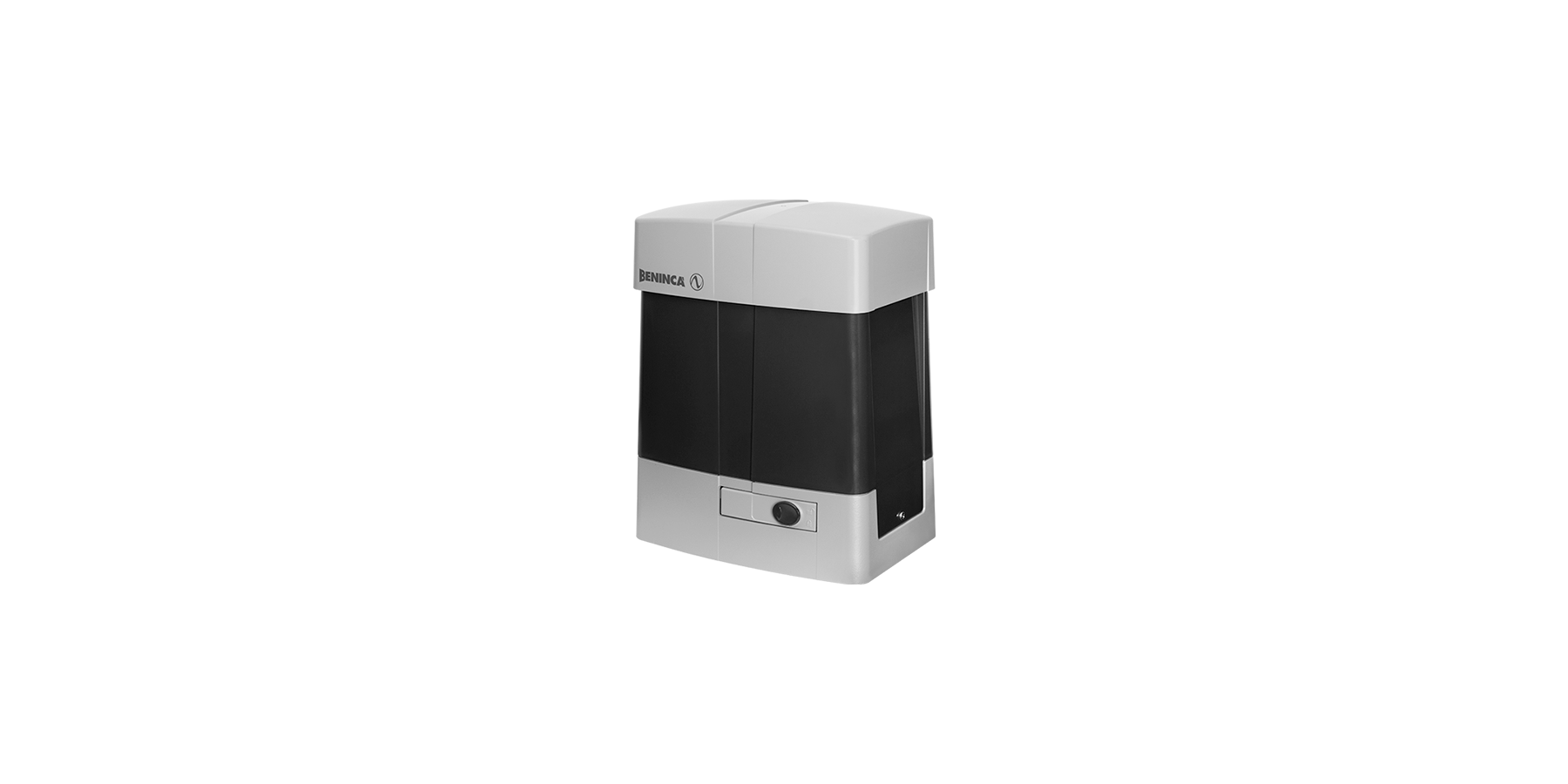

Geared motor BULL17 OMI

230 Vac gear motor for intensive use with integrated control unit, virtual encoder and inverter

Industrial use

230 Vac

Up to 1700 kg

Encoder signal recreated by the control unit beginning with the measurements of electric motor operation parameters. It is possible to manage slowing optimally and trace gate travel while providing the torque data in relation to its position to guarantee maximum safety

The inverter technology allows the speed of the motor to be gradually varied, during both acceleration and deceleration, as well as guaranteeing a more precise adjustment of the gate movement phases and a greater anti-crushing safety

Intelligent power control system that allows obtaining dynamic data through a precise calculation of the thrust. The system is able to locate any critical points and adjust the torque accordingly in relation to actual requirements and according to measured performance

Oil lubricated motors guarantee the maximum lifespan and high performances

512 transmitters storable inside the receiver

BULL17 OMI

230 Vac

230 Vac gear motor for intensive use with integrated control unit, virtual encoder and inverter | The main control unit, located in the top part of the motor and with integrated inverter, makes it possible to calculate the position of the motor starting from the measurement of current intensity on the electric motor (virtual encoder) | The inverter technology allows the speed of the motor to be gradually varied, during both acceleration and deceleration, as well as guaranteeing a more precise adjustment of the gate movement phases and a greater anti-crushing safety | Oil lubrication guarantees maximum duration of the reducer. The type of oil is very effective and guarantees excellent performance even at low temperatures | Reduced mechanical wear of components | The virtual encoder allows proper management of the slowing-down phases, movement tracking (STC system), and torque management in relation to the position of the gate, which guarantees maximum safety | Adjustable speed from 10 to 24 m/min according to gate weight | Safety sensor that stops the motor power supply during release operations | Receiver ONE.2WI is supplied | Metal release lever

Foundation plate with anchor bolts included. Motor and floor fixing distance 269x106 mm n.4 Ø 12 mm

Power supply 230 Vac (50-60Hz)
Motor supply 230 Vac
Max absorbed current 7 A
Maximum thrust 1880 N
Opening speed 24 m/min
Duty cycle 60%
Protection level IP44
Built-in control unit
Integrated receiver
Encoder
Virtual encoder
Magnetic limit switches
Pinion for rack M4 Z18
Operating temperature -20°C /+50°C
Lubrication OIL
Maximum gate weight 1700 kg
Weight 21.6 kg
N. motors per pallet 20

CP.BULL OMI

APPLICATION

1 actuator for sliding gates, series BULL17 OMI

CONTROL UNIT POWER SUPPLY

230 Vac – 50/60 Hz

MOTORS POWER SUPPLY

230 Vac

MAIN FUNCTIONS

Integrated LCD display | ONE2.WI model 433.92 MHz radio receiver provided as standard equipment | Removable terminal boards | Automatic, semi-automatic and deadman’s logic | Motor limit switch inputs | Step by step, open, close, pedestrian and stop inputs | no. 2 photocell inputs configurable as active in opening-closing or in closing phases | Input for N.C or 8K2 sensitive edge | Input for safety sensor | Output configurable as gate open indicator, service light, area light | Photocell testing output | Second radio channel output | Autosetting of operating parameters | Electronic torque adjustment with automatic calculation for each point in the stroke (STC SYSTEM) | Anti-crushing safety thanks to amperometric obstacle detection | Adjustable slow-downs | Advantouch system to configure parameters and manage radio transmitters | Integrated inverter | Virtual encoder | Number of maneuvers | Programming access password | Maintenance warning

Technical Drawing BULL17 OMI
