YAK25 OTI

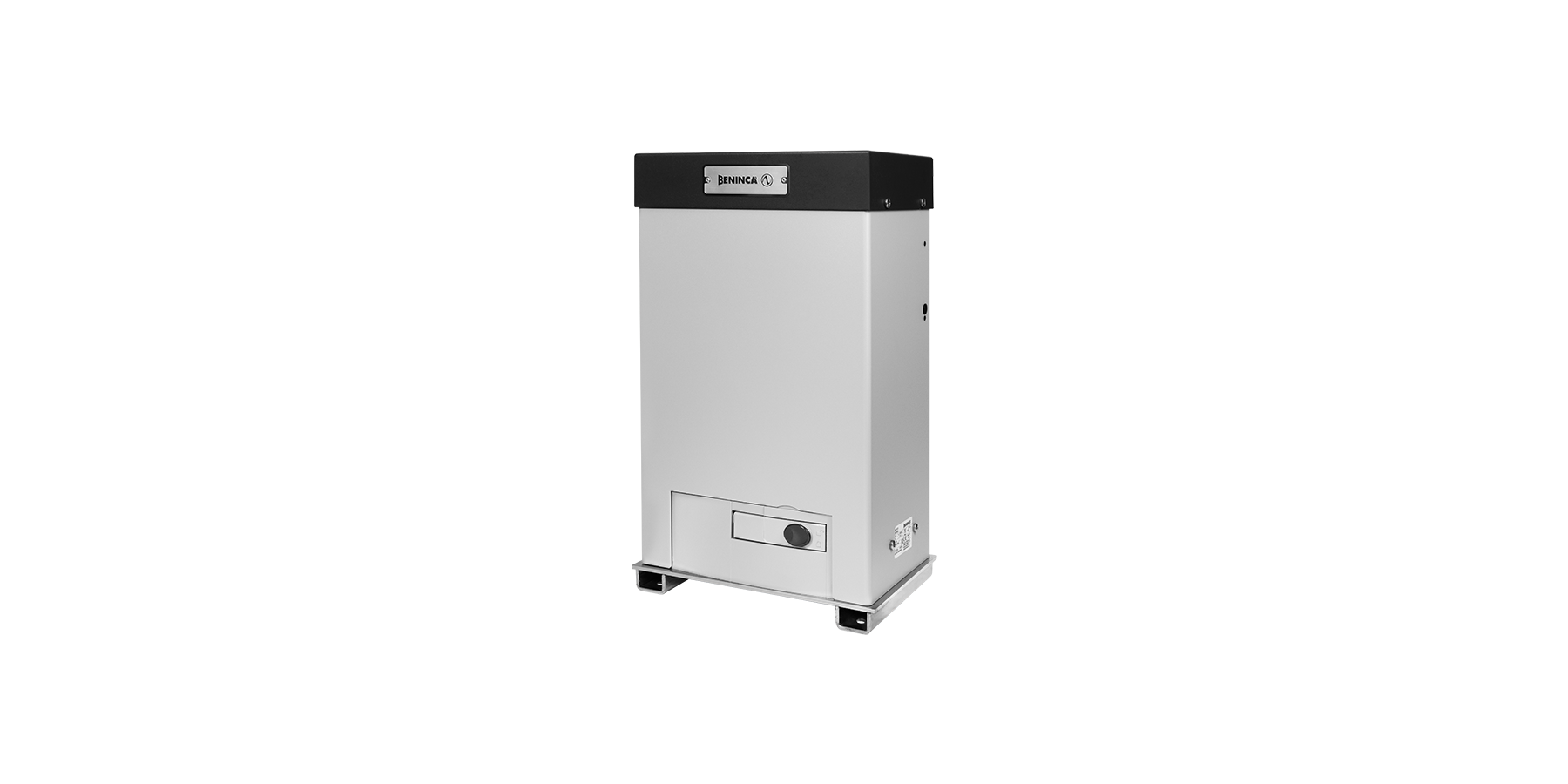

230 Vac gear motor for intensive use with integrated control unit, virtual encoder and inverter

Industrial use

230 Vac | three phase

Up to 2500 kg

Encoder signal recreated by the control unit beginning with the measurements of electric motor operation parameters. It is possible to manage slowing optimally and trace gate travel while providing the torque data in relation to its position to guarantee maximum safety

The inverter technology allows the speed of the motor to be gradually varied, during both acceleration and deceleration, as well as guaranteeing a more precise adjustment of the gate movement phases and a greater anti-crushing safety

Intelligent power control system that allows obtaining dynamic data through a precise calculation of the thrust. The system is able to locate any critical points and adjust the torque accordingly in relation to actual requirements and according to measured performance

Oil lubricated motors guarantee the maximum lifespan and high performances

512 transmitters storable inside the receiver

YAK25 OTI

230 Vac | three-phase, intensive use

230 Vac gear motor for intensive use with integrated control unit, virtual encoder and inverter | Self-ventilated motor for more intense use | Oil lubricated metallic gear box to ensure maximum performance even at low temperatures | The main control unit, located in the top part of the motor and with integrated inverter, makes it possible to calculate the position of the motor starting from the measurement of current intensity on the electric motor (virtual encoder) | The virtual encoder allows proper management of the slowing-down phases, movement tracking (STC system), and torque management in relation to the position of the gate, which guarantees maximum safety | The inverter technology allows the speed of the motor to be gradually varied, during both acceleration and deceleration, as well as guaranteeing a more precise adjustment of the gate movement phases and a greater anti-crushing safety | Adjustable speed from 10 to 24 m/min according to gate weight | Safety sensor that stops the motor power supply during release operations | External metal casing with the possibility to install PUPILLA/PUPILLA.T photocells (as accessory) | Receiver ONE.2WB is supplied | Metal release lever

Raised foundation plate included. Height 32 mm. Floor fixing distance 280x170 mm, no. 4 Ø 11 mm, motor fixing distance 269x106 mm n.4 M10

Power supply 230 Vac (50-60Hz)
Motor supply 230 Vac
Max absorbed current 4.0 A
Maximum thrust 2500 N
Opening speed 24 m/min
Duty cycle intensive use
Protection level IP44
Built-in control unit
Integrated receiver
Encoder
Virtual encoder
Magnetic limit switches
Pinion for rack M4 Z18
Operating temperature -20°C /+50°C
Lubrication OIL
Maximum gate weight 2500 kg
Weight 36.3 kg
N. motors per pallet 8

CP.YAK OTI

APPLICATION

1 actuator for sliding gates, series YAK25 OTI

CONTROL UNIT POWER SUPPLY

230 Vac – 50/60 Hz

MOTORS POWER SUPPLY

230 Vac three-phase

MAIN FUNCTIONS

Integrated LCD display | ONE2.WB model 433.92 MHz radio receiver provided as standard equipment | Removable terminal boards | Automatic, semi-automatic and deadman’s logic | Motor limit switch inputs | Step by step, open, close, pedestrian and stop inputs | no. 2 photocell inputs configurable as active in opening-closing or in closing phases | Input for N.C or 8K2 sensitive edge | Input for safety sensor | Output configurable as gate open indicator, service light or area light | Photocell testing output | Second radio channel output | Autosetting of operating parameters | Electronic torque adjustment with automatic calculation for each point in the stroke (STC SYSTEM) | Anti-crushing safety thanks to amperometric obstacle detection | Adjustable slow-downs | Advantouch system to configure parameters and manage radio transmitters | Integrated inverter | Virtual encoder | Number of maneuvers | Programming access password | Maintenance warning

Technical Drawing YAK25 OTI
